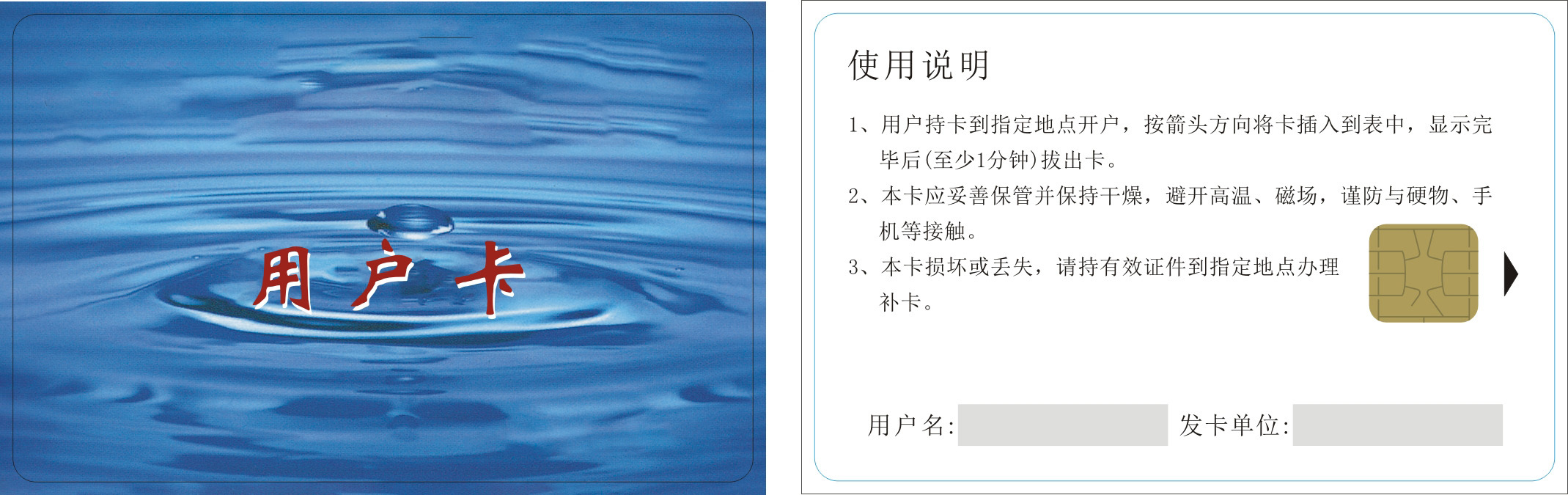

4428 encrypted user card
Classification:
Key words:
428 card is a kind of contact IC card with 4428 chip imported from Siemens, which has the advantages of write protection and logic encryption. The company now provides domestic and foreign users with blank 4428 chip cards and excellent card printing and custom processing services. At present, such cards are mainly adapted to telecom cards, IP cards, smart cards, integrated circuit cards, membership cards, electronic tickets, VIP cards, medical, insurance, transportation, schools, water and electricity and other industries.
Product Details
428 card is a kind of contact IC card with 4428 chip imported from Siemens, which has the advantages of write protection and logic encryption. The company now provides domestic and foreign users with blank 4428 chip cards and excellent card printing and custom processing services. At present, such cards are mainly adapted to telecom cards, IP cards, smart cards, integrated circuit cards, membership cards, electronic tickets, VIP cards, medical, insurance, transportation, schools, water and electricity and other industries.
Main indicators
> 1024 bytes of EEPROM
> 1024 bytes of write protection area (curing data)
> 2 bytes password, error count 8 times
> Temperature range:-35 ℃ ~ 80 ℃
> At least 100000 times
> Data retention period of at least 10 years
> Working voltage: 5V
Function Description
1. The 4428 capacity is 1K bytes, and the address space is from 0 to 1023.
2. All data except the password can be read out under any circumstances, and the password can be read out after checking correctly.
3. All data including the password itself can be written or changed after checking the correct password.
4. All data can be write-protected by bytes, and the data can be solidified after write-protection, and cannot be changed under any circumstances.
5. There is a password error counter. The address is 1021. The initial value is 8, the password check error once, then minus 1. If the counter value is 0, the data of the whole card will be locked and can only be read out and cannot be used again.
